BYJ stepper motor features:
1. High and low temperature resistance -40°C to 140°C. Lifespan over 10,000 hours.
2. Noise level as low as 40 dbs.
3. Anti-interference, unaffected by external factors and step loss.
4. Low-speed: 1 to 40 revolutions per minute.
The reasons to Select Xingmai Motor:
1. Salt spray (corrosion resistance) up to 8 hours
2. Working life over 10,000 hours
3. Low noise, below 40 decibels
4. High-temperature resistance, working temperature 80-90 degrees.
5. High-performance neodymium iron boron (rare earth) magnets, smaller size, light weight, and strong magnetic properties.
24BYJ48 Stepper Motor Datasheets:
| Model | Voltage(V) | Resistance(Ω) | Step Angle (1-2P) /(2-2P) | Frequency(PPS) | Pull-in Torque(mN.m) | Self-locating Torque(mN.m) | No-loading pull-in frequency(PPS) | No-loading pull-out frequency(PPS) |
| 24BYJ48 | 5 | 20 | (5.625°/64) /(11.25°/64) | 100 | ≥78.4 | ≥34.3 | ≥500 | ≥900 |
| 12 | 50 | (5.625°/64) /(11.25°/64) | 500 | ≥150 | ≥49 | ≥500 | ≥900 | |
| 12 | 70 | (5.625°/64) /(11.25°/64) | 500 | ≥13 | ≥49 | ≥500 | ≥900 | |
| 12 | 200 | (5.625°/64) /(11.25°/64) | 400 | ≥78.4 | ≥34.3 | ≥500 | ≥900 | |
| 12 | 70 | (5.625°/16) /(11.25°/16) | 400 | ≥19.6 | ≥19.6 | ≥500 | ≥900 | |
| 12 | 70 | (5.625°/32) /(11.25°/32) | 400 | ≥49 | ≥19.6 | ≥500 | ≥900 | |
| 12 | 50 | (5.625°/37) /(11.25°/37) | 500 | ≥100 | ≥34.3 | ≥500 | ≥900 | |
| 24 | 200 | (5.625°/64) /(11.25°/64) | 400 | ≥150 | ≥34.3 | ≥500 | ≥900 | |
| 24 | 300 | (5.625°/64) /(11.25°/64) | 400 | ≥80 | ≥34.3 | ≥500 | ≥900 |
Applications:
Stepper motors are widely used in security monitoring, office automation equipment, financial payment devices, stage lighting, smart home appliances, sanitary ware, textile machinery, robotics, and other automated monitoring applications requiring precise positioning, automatic aiming, and automatic recording.
Voltage, resistance, cable length, shaft length (flattened position), reduction ratio, and terminals are customizable.
24BYJ48 DIMENSIONS: mm
24BYJ48 Stepper Motor Torque Curve:
24BYJ48 Series Applications:
Custom BYJ Stepper Motors Tailored to Your Specific Needs

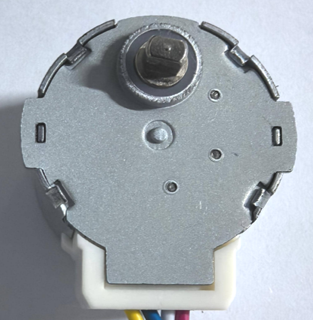

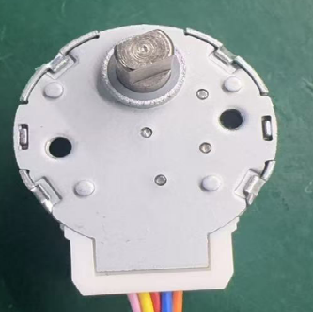

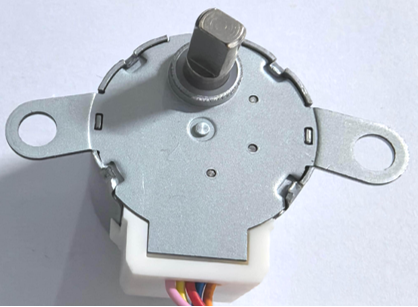

24BYJ48 Micro 24mm Smart Toilet Stepping Motor For Automatic Opening And Closing System
